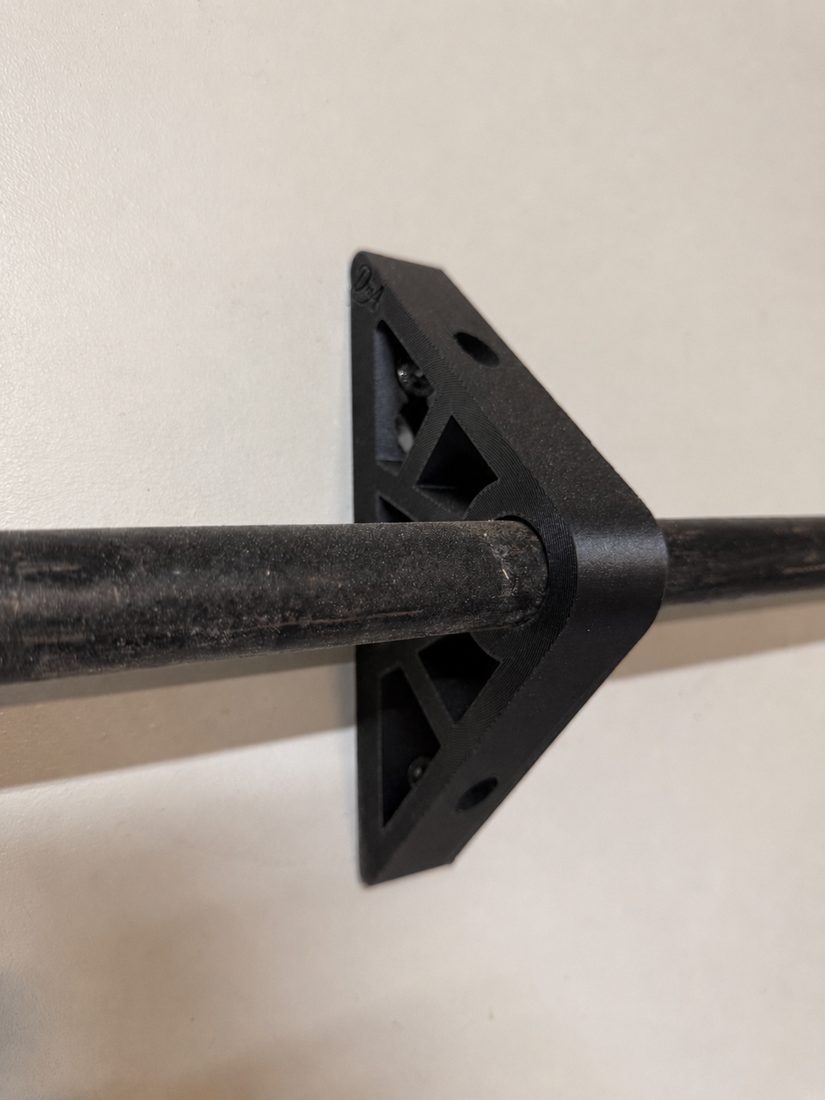

PipeHold™ Mount
Bolt ¾" black steel pipe to your wall studs and get a rock-solid rail for hanging tools, clamps, hoses, and gear. Two parts, the right fasteners, and a manual that walks you through it.
A set is two brackets — enough for one 48" span. Local to Warsaw? Pickup is $22 — just reach out.
Secure checkout on Etsy. Local to Warsaw? Order direct for pickup at $22.

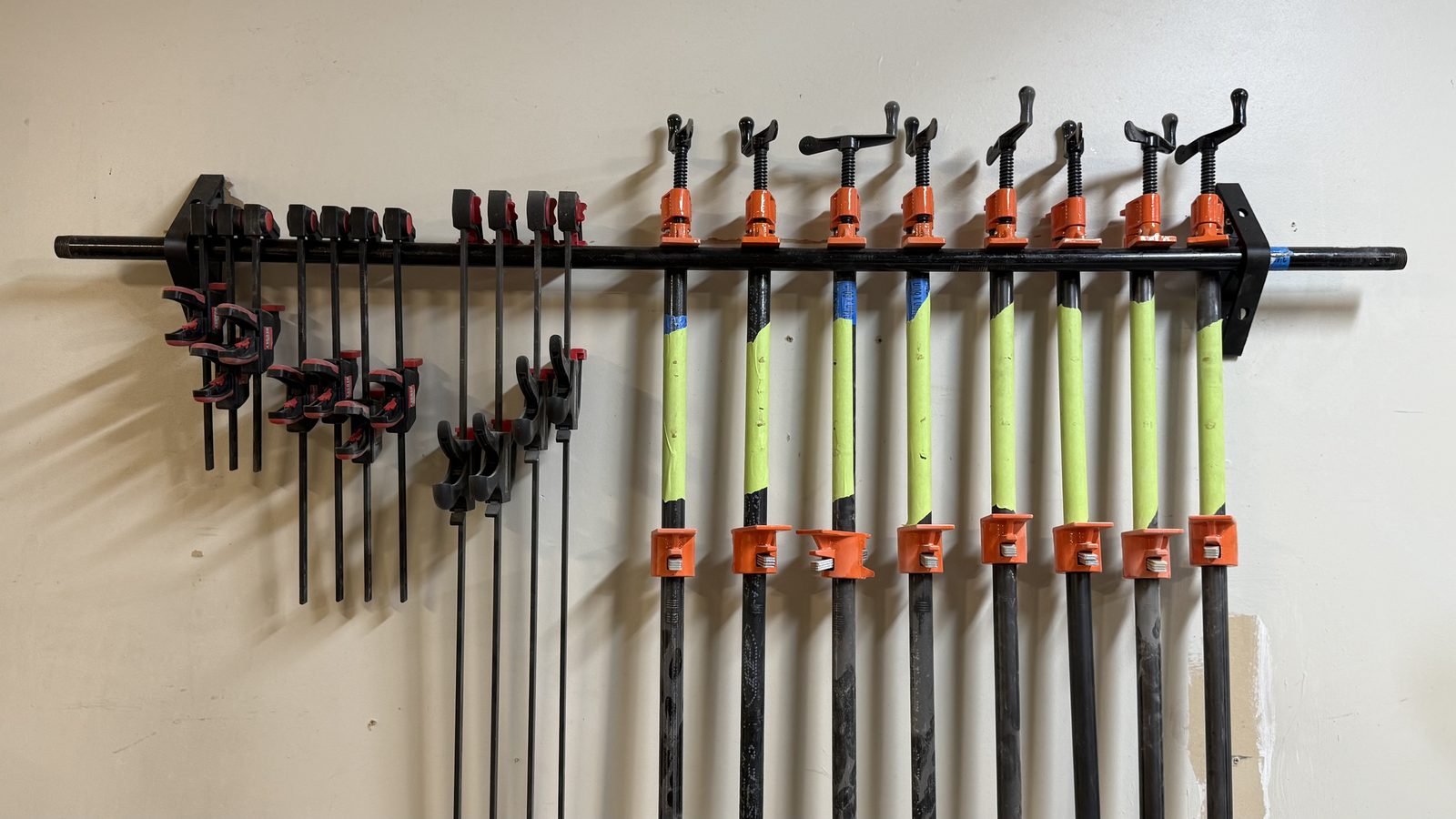

One set holds a wall of clamps
Two brackets, one length of pipe, and your clamps are off the floor and easy to grab — pipe clamps, bar clamps, and quick-grips all on one rail. Mounted in a real shop, holding real weight.
And that 200 lb? We mean it.
Rated 200 lb static per set — and tested the honest way, with a grown man hanging off the rail. Sink it into your studs and it'll shrug off whatever the shop throws at it.
The warranty doesn't cover pull-ups. It held them anyway.

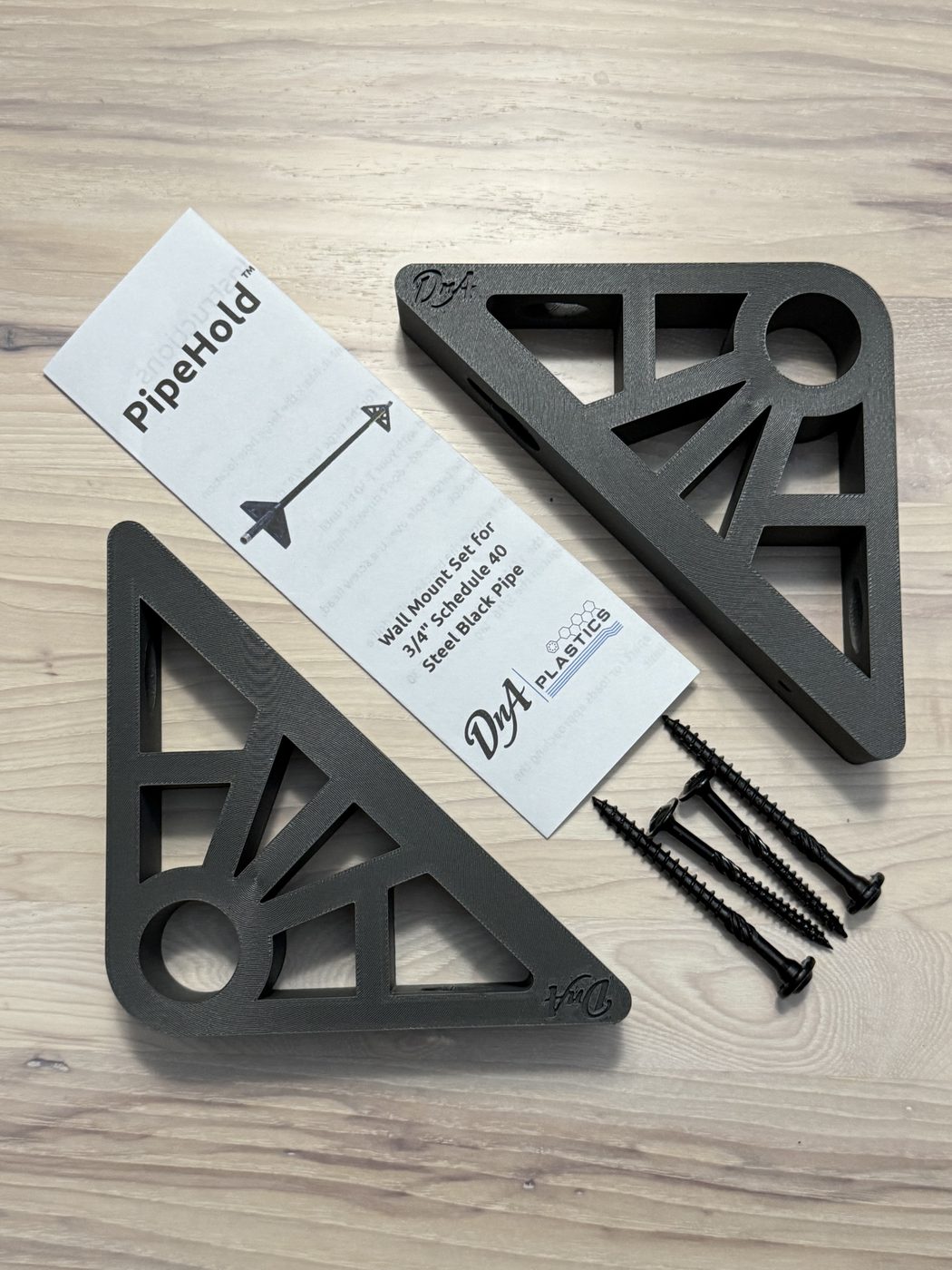

Everything you need, nothing you don't
- 2 wall brackets (PETG-CF)
- 2 GRK 5/16" lag screws (primary mount)
- 2 ¼" lag screws (anti-rotation)
- Illustrated install manual
That's it. No pipe. No excuses.
Built and tested
| Pipe size | ¾" Schedule 40 black steel pipe |
|---|---|
| Load rating | 200 lb static (tested) |
| Mounting | Wall studs only, 16" centers |
| Max bracket spacing | 48" |
| Pipe standoff from wall | 3.14" |
| Material | PETG-CF (carbon-fiber filled) |
| Colors | Matte gray, black, red, green, or blue (more on request) |
Install note
Mount into studs only. Keep the primary lag loose until the anti-rotation lag is fully seated, then tighten both. Full instructions are in the included manual.
Layer lines and minor surface variation are normal for a printed part and do not affect the bracket's strength.
Up in about 15 minutes
Mounts to wall studs only — no drywall anchors, no exceptions. Hang the bracket on the primary lag, seat the anti-rotation lag, tighten both, set your pipe. The full step-by-step is in the manual.
You'll need
- Drill with 3/16" and 1/8" bits
- Stud finder and a level
- T-30 Torx bit
Rated for 200 lb static load per set, mounted into wood studs on 16" centers. Static means the pipe is holding your stuff — not you swinging from it like you're at the gym. Studs only; skip the stud finder and that's on you, not us.
Made in the USA — actually made, by a real person, on a real printer, in a real garage. Warsaw, Indiana.
Questions before you buy?
Need a different span, a longer standoff, or a batch for a job? Reach out and we'll sort it.
